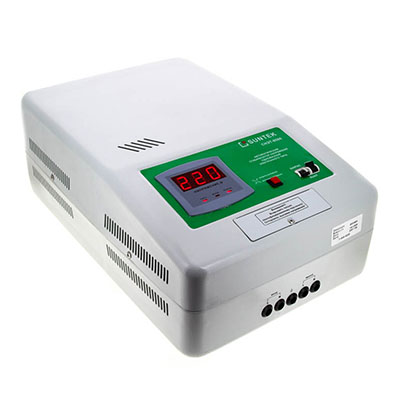

Relay voltage stabilizer SUNTEK 8500 VA

Model made for cottages, townhouse or big apartments. You can use this stabilizer with welding.

Regular Price:

$ 193

Buy from 3 pcs and more
and get our wholesale price:

$ 174Contact Us

Specifications:

Rated power, VA

8500

Maximum current, A

40

Input voltage range, V

120 - 285

Output voltage range, V

220+/- 8%

Stabilization type

relay

Accuracy output voltage,%

8

Adjustment

stepwise

Distortion sine wave

no

Operating range t ° C

-30 - +50

Cooling

forced

Network Connection Method

terminal block

Housing

metal

Protection against short circuit

+

Lightning protection

+

Overall dimensions, cm

43x28x18

Weight, kg.

16

Model with forced cooling! Do you have a country house and low voltage? You can even use welding through such a voltage stabilizer! This stabilizer is installed in many plants and factories, sets of three pieces allow to ensure stable voltages all three phases!

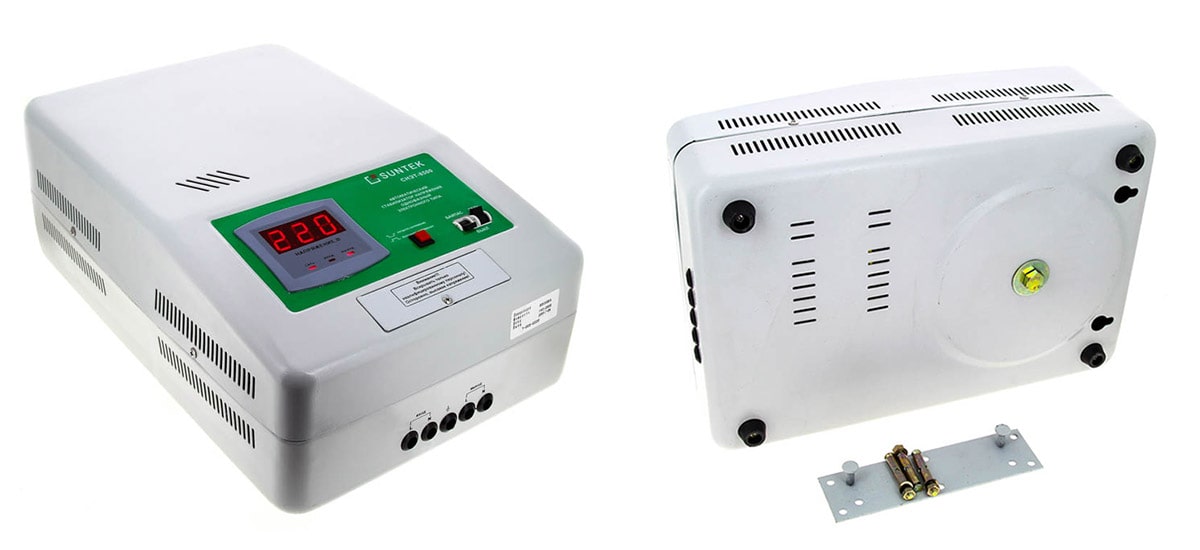

High speed response to changes in input voltage. Power surges are instantly “processed” by the microcircuit and relays (10 ms). Full nominal already when the input voltage reaches 140 volts. Automatic commissioning, continuous network testing. It is frost-resistant, temperature condition of work from -300 C to +500 C, compulsory cooling at high temperatures of a winding. Universal case - can be put on the legs, or hanged on the wall with a fastener (supplied with each stabilizer).

Short circuit protection
Overload protection (overheating)
Undervoltage protection
Overvoltage protection
Protection against impulse (lightning) discharges
Effective smoothing of impulse noise in the network

Relay voltage stabilizer SUNTEK 8500 VA

The board shows the output voltage of 220 volts . If, as a result of further voltage drop (and this is in the range of 120-140 Volts), the output voltage becomes less than the allowable  then the board shows what kind of voltage comes out of the stabilizer. When the input voltage is less than 120 volts, the letter "L" lights up on the display, but for some time there is still voltage at the output of the stabilizer.

So the stabilizer will work even from 70 volts , but we must understand that its load level should then be less than the nominal. The stabilizer begins to perform its full characteristics from 120 volts. At a voltage in the range of 270-285 Volts, the actual output voltage will also be shown on the display. But when reaching 285-288 Volt, the stabilizer will immediately turn off by turning off all devices (the letter “H” on the display). The output voltage will be high and dangerous for the equipment.

The electronic unit of the voltage stabilizer SUNTEK is a fairly powerful microcontroller, in which the input and output voltage is analyzed and signals are generated to control the stabilizer keys. When forming the control voltage, the microcontroller takes into account the response time of keys and power relays. This allows for switching without breaks. As a result, the voltage waveform at the output of the relay stabilizer repeats the shape at the input.

SUNTEK voltage regulator will be your network status indicator from 70 to 285 volts . If you are interested, follow the state of the network, if you do not have time - the stabilizer will control everything himself and give the best option for this situation.



We use different color panel for relay type voltage stabilizers. Green color for CIS countries. Gray color is universal, we use for the rest of the world. There are no fundamental technical differences.



Warranty period of work 3 years, the term of operation not less than 20 years.

Loss of neutral protection

With this voltage stabilizer, we recommend installing our LOSS OF NEUTRAL PROTECTION SUNTEK development. This device protects your equipment from burning out if the voltage on the neural wire is lost. Overvoltage occurs mainly due to breakage of neutral conductors, when the supply voltage is distributed unevenly between consumers or due to errors of personnel serving the electrical network. An open conductor breaks or burns out when the electrical network is overloaded (the load on the network increases every year); under adverse weather conditions, when food is produced by an air line (wind, fallen tree); during short circuits in the electrical network; with poor contact at the junction of neutral conductors; when stealing non-ferrous metal (wire); with old wiring in the home network.

We recommend installing LOSS OF NEUTRAL PROTECTION SUNTEK in front of a voltage stabilizer, for example SUNTEK. At high voltages in excess of 285 volts, the voltage regulator disconnects the entire load from the power source, but remains itself at high voltage, waiting for a lower line voltage. To protect not only your house from burning, but also a voltage stabilizer, install such protection in front of a voltage stabilizer, and you will receive complete protection against any voltage fluctuations in the network. The stabilizer and LOSS OF NEUTRAL PROTECTION SUNTEK are synchronized at the same voltage, for example, for SUNTEK voltage regulators, this is 285 Volts, in this case it does not reduce the operating range of the stabilizer, LOSS OF NEUTRAL PROTECTION SUNTEK, but serves as its additional protection and protection against burning out the neutral conductor which has often become commonplace in cities and villages.



Graph of voltage stabilizer power versus input voltage.

Graph of voltage stabilizer power versus input voltage - SUNTEK
