Relay voltage stabilizer SUNTEK 16000 VA - Electrosheriff

Relay voltage stabilizer SUNTEK 16000 VA

The powerful stabilizer for the cottage, production and country house!

Regular Price:

$ 320

Buy from 3 pcs and more
and get our wholesale price:

$ 290Contact Us

Specifications:

Rated power, VA

16000

Maximum current, A

75

Input voltage range, V

120 - 285

Output voltage range, V

220+/- 8%

Stabilization type

relay

Accuracy output voltage,%

8

Adjustment

stepwise

Distortion sine wave

no

Operating range t ° C

-30 - +50

Cooling

forced

Network Connection Method

terminal block

Housing

metal

Protection against short circuit

+

Lightning protection

+

Overall dimensions, cm

50х27х17

Weight, kg.

22

The most powerful hinged model in the classic line of voltage stabilizers. The undervoltage stabilizer line has only 20,000 wide-range.

One of the most powerful in the line of SUNTEK relay stabilizers, 75 Amper automat with bypass, lightning protection, full-power pulling coil from 140 Volts at the input, a microprocessor control circuit, a powerful terminal block, a forced cooling fan - a stabilizer filling that allows you to drop everything anxiety due to poor tension in the house.

It is in high demand among those living in the country (house, cottage), owners of small production sites, workshops, as well as owners of “demanding” equipment - power tools (compressors, pumping stations, HVAC equipment, etc.).

Installation in a three-phase network for each phase will provide 48 kVA of power, and thereby eliminate the possibility of complete loss of the network. When connecting a three-phase load (machines, motors, etc.), it is enough to additionally install a phase control relay.

The ability to connect a large number of pieces of equipment, electrical wiring throughout the house - makes this model indispensable for suburban life. The SUNTEK 16000VA voltage relay of the relay type possesses all the qualities of the SUNTEK relay line - reliability, simplicity, quality for reasonable money.

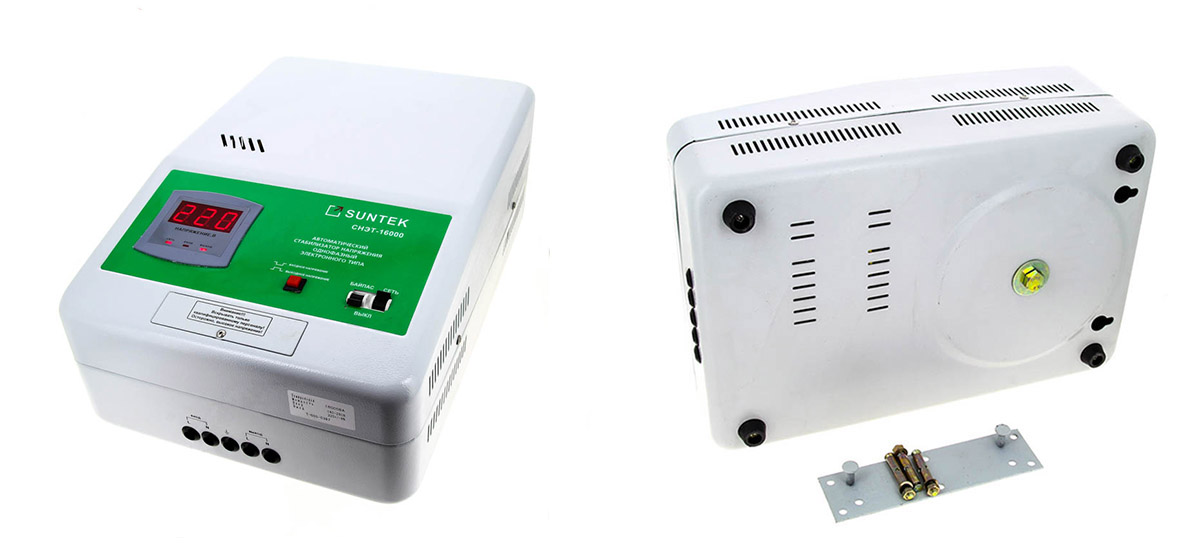

Relay voltage stabilizer SUNTEK 16000 VA

Universal metal case.
New Holtek Microcontroller
Holds full power from 140 volts
Digital display
Bypass (input voltage transits to the output, without stabilization)
Wide operating range (120-285 volts)
Instant response time to change in input voltage
High accuracy of stabilization

Automatic delay
Analysis of the input voltage at any time
Short circuit protection
Overload protection (overheating)
Undervoltage protection
Overvoltage protection
Protection against impulse (lightning) discharges
Effective smoothing of impulse noise in the network



We use different color panel for relay type voltage stabilizers. Green color for CIS countries. Gray color is universal, we use for the rest of the world. There are no fundamental technical differences.



It is frost-resistant, temperature condition of work from -300 C to +500 C, compulsory cooling at high temperatures of a winding. Universal case - can be put on the legs, or hanged on the wall with a fastener (supplied with each stabilizer).

Warranty period of work 3 years, the term of operation not less than 20 years.

Loss of neutral protection

With this voltage stabilizer, we recommend installing our LOSS OF NEUTRAL PROTECTION SUNTEK development. This device protects your equipment from burning out if the voltage on the neural wire is lost. Overvoltage occurs mainly due to breakage of neutral conductors, when the supply voltage is distributed unevenly between consumers or due to errors of personnel serving the electrical network. An open conductor breaks or burns out when the electrical network is overloaded (the load on the network increases every year); under adverse weather conditions, when food is produced by an air line (wind, fallen tree); during short circuits in the electrical network; with poor contact at the junction of neutral conductors; when stealing non-ferrous metal (wire); with old wiring in the home network.

We recommend installing LOSS OF NEUTRAL PROTECTION SUNTEK in front of a voltage stabilizer, for example SUNTEK. At high voltages in excess of 285 volts, the voltage regulator disconnects the entire load from the power source, but remains itself at high voltage, waiting for a lower line voltage. To protect not only your house from burning, but also a voltage stabilizer, install such protection in front of a voltage stabilizer, and you will receive complete protection against any voltage fluctuations in the network. The stabilizer and LOSS OF NEUTRAL PROTECTION SUNTEK are synchronized at the same voltage, for example, for SUNTEK voltage regulators, this is 285 Volts, in this case it does not reduce the operating range of the stabilizer, LOSS OF NEUTRAL PROTECTION SUNTEK, but serves as its additional protection and protection against burning out the neutral conductor which has often become commonplace in cities and villages.



Graph of voltage stabilizer power versus input voltage.

Graph of voltage stabilizer power versus input voltage - SUNTEK
