Relay voltage stabilizer SUNTEK 1500 VA - Electrosheriff

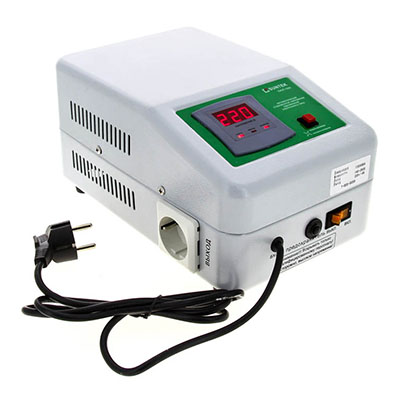

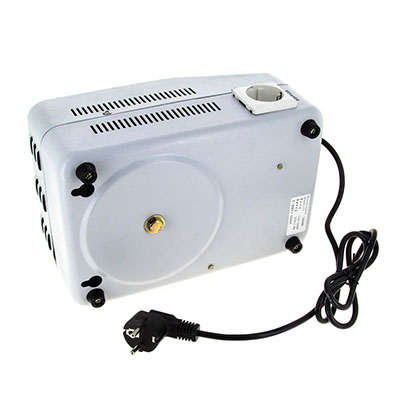

Relay voltage stabilizer SUNTEK 1500 VA

Ideal for household appliances, such as a refrigerator, computer, TV, and you can turn on several appliances at the same time. The stabilizer will check everything by itself and provide 220 volts to power the devices.

Regular Price:

$ 66

Buy from 3 pcs and more
and get our wholesale price:

$ 59Contact Us

Output Socket:

B-01

B-02

B-03

B-04

B-05

B-06

B-07

B-08

B-09

B-10

B-11

B-12

B-13

B-14

B-15

Input Plug:

A-01

A-02

A-03

A-04

A-05

A-06

A-07

A-08

A-09

A-10

A-11

A-12

A-13

A-14

A-15

A-16

A-17

A-18

A-19

A-20

A-21

A-22

A-23

A-24

Specifications:

Rated power, VA

1500

Maximum current, A

9

Input voltage range, V

120 - 285

Output voltage range, V

220+/- 8%

Stabilization type

relay

Accuracy output voltage,%

8

Adjustment

stepwise

Distortion sine wave

no

Operating range t ° C

-30 - +50

Cooling

passive

Network Connection Method

plug/socket

Housing

metal

Protection against short circuit

+

Lightning protection

+

Overall dimensions, cm

28x18x14

Weight, kg.

6

This is a serious model! 1500 watts can fully provide your kitchen with a stable voltage - a microwave, a refrigerator, a tester - everything will work. The honest power of the voltage regulator is first and foremost your comfort. No need to think and think ... You bought this stabilizer so that your equipment worked for many years, it will be so. The voltage regulator is always on guard, 24/7, stable 1500 W.

What can we attract? First is the quality. People are tired of poor quality, of not matching parameters, etc. We went the other way. We do not sell at a low price, we sell at the right price. Install such a voltage regulator in your home and you yourself will understand everything.

Relay voltage stabilizer SUNTEK 1500 VA
And now the facts:
1. Operating range 120-285 volts
2. In the range of 140-270 Volt, the stabilizer fully corresponds to the nominal, it can be seen on the video!
3. The presence of lightning protection allows it to be used in difficult weather conditions in India, the UAE, and African countries.
4. Installed relays in the stabilizer provide up to 100,000 switches each. If each relay switches 20 times a day (a total of 80 times), even with such conditions, the resource will be enough for almost 14 years of work!
Silver on the contacts eliminates their sticking.



We use different color panel for relay type voltage stabilizers. Green color for CIS countries. Gray color is universal, we use for the rest of the world. There are no fundamental technical differences.



The electronic unit of the voltage regulator SUNTEK is a fairly powerful microcontroller, in which the input and output voltage is analyzed and signals are generated to control the stabilizer keys. When forming the control voltage, the microcontroller takes into account the response time of keys and power relays. This allows switching without breaks. As a result, the voltage waveform at the output of the relay stabilizer repeats the shape at the input. SUNTEK voltage regulator will be your network status indicator. If you are interested, follow the state of the network, if you do not have time - the stabilizer will control everything by itself and will give the best option for this situation.

3 year warranty



Graph of voltage stabilizer power versus input voltage

Graph of voltage stabilizer power versus input voltage - SUNTEK
