Invertor voltage stabilizer SUNTEK QUANTUM WI-FI 3000VA - Electrosheriff

Invertor voltage stabilizer SUNTEK QUANTUM WI-FI 3000VA

Invertor voltage stabilizer SUNTEK QUANTUM WIFI 3000VA

Regular Price:

$ 205

Specifications:

Rated Power:

3000VA

Input Voltage Range:

90-310V

Nominal Output Voltage:

230V

Stabilization Accuracy

2%

Output Waveform:

Pure Sine Wave

See Product Video

The SUNTEK QUANTUM 3000 Wi-Fi is a single-phase inverter voltage stabilizer featuring double-conversion technology and an integrated Wi-Fi module. It is designed to supply groups of higher-power electrical loads operating in networks with unstable power conditions.

The unit is engineered for continuous operation and is intended to protect engineering systems and sensitive equipment where stable voltage and remote monitoring capabilities are essential.

Unlike conventional stabilizers, the SUNTEK QUANTUM does not utilize mechanical voltage regulation components and does not employ an automatic bypass that transfers raw mains voltage directly to the connected load.

Operating Principle

The stabilizer operates using a double-conversion topology:

  • Incoming AC voltage is converted into DC voltage.
  • The DC voltage is then converted into a new AC output voltage with precisely controlled parameters.

This technology provides several important advantages:

  • Output voltage remains independent of input voltage fluctuations.
  • No step-switching transitions occur during operation.
  • Zero response time to changes in mains voltage.

Key Safety Advantage

SUNTEK QUANTUM inverter stabilizers are designed without the potentially hazardous active bypass mode commonly found in many competing products.

In the event of overload, operating conditions exceeding permissible limits, or an internal fault, the stabilizer does not transfer incoming mains voltage directly to the connected load (a phenomenon commonly referred to as active bypass operation within the 187–240 V range). Instead, the SUNTEK QUANTUM automatically disconnects the load, providing maximum protection for connected equipment.

Wi-Fi Connectivity and Smart Home Integration

The stabilizer is equipped with an integrated 2.4 GHz Wi-Fi module for remote monitoring and control.

Supported functions include:

  • Remote control of connected equipment via the Smart Life and Digma Smart Life mobile applications.
  • Real-time power consumption monitoring.
  • Programmable operating schedules (automatic power ON/OFF).
  • Retention of Wi-Fi settings during power outages.
  • Push notifications in the event of a power failure (approximately 30 minutes after loss of mains power, with protection against false alarms).
  • Integration with smart home ecosystems, including Yandex Alice (via Digma Smart Life).
  • Voice control functionality.

Load Connection Options

The SUNTEK QUANTUM 3000 Wi-Fi is equipped with:

  • One output socket.
  • Terminal block for permanent hardwired installation.

Loads may be connected simultaneously through both the output socket and the terminal block.

The total combined load must not exceed the rated capacity of 3000 VA.

Recommended Applications

The QUANTUM 3000 Wi-Fi is recommended for powering:

  • Gas boilers with complete boiler automation systems.
  • Multiple circulation pumps.
  • Heating and water supply systems.
  • Air conditioning and refrigeration equipment.
  • Servers, network devices, and telecommunications equipment.
  • Video surveillance and security systems.
  • Household appliances with electronic control systems.

Its power reserve allows protection of entire engineering systems and groups of equipment rather than individual devices.

Technical Specifications

  • Rated Power: 3000 VA
  • Maximum Active Load: up to 3000 W
  • Nominal Input Voltage: 230 V (220 V)
  • Input Voltage Range: 90–310 V
  • Nominal Output Voltage: 230 V
  • Stabilization Accuracy: ±2%
  • Frequency: 50 / 60 Hz
  • Output Waveform: Pure Sine Wave
  • Response Time: Instantaneous
  • Mechanical Regulation Components: None
  • Automatic Bypass: Not Available
  • Cooling System: Natural and forced cooling. The cooling fan activates automatically only when additional cooling is required and does not operate continuously.
  • Efficiency: Up to 98%
  • Dimensions: 424 × 238 × 102 mm
  • Weight: 8 kg

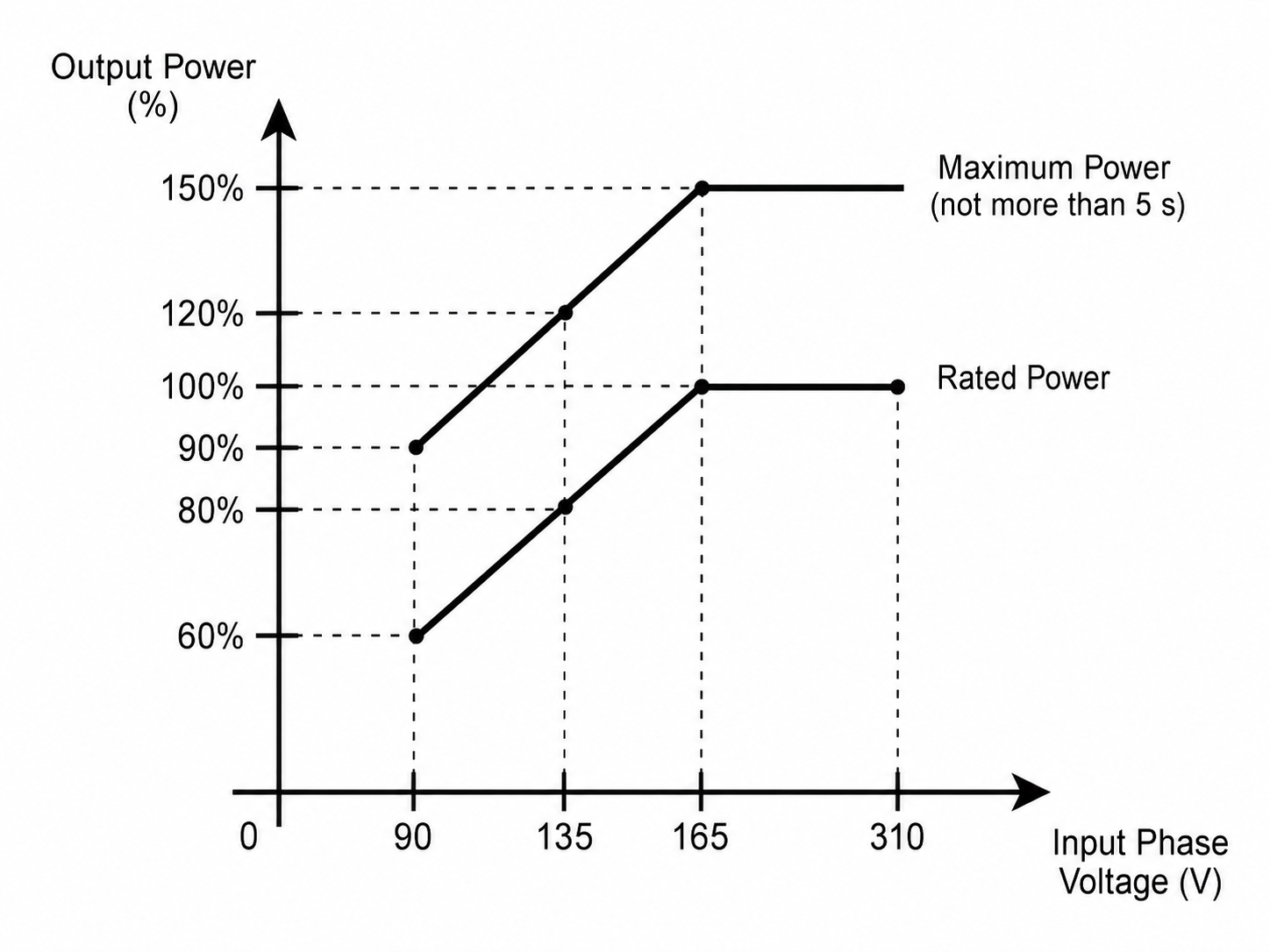

Power derating curve depending on input voltage is available separately.

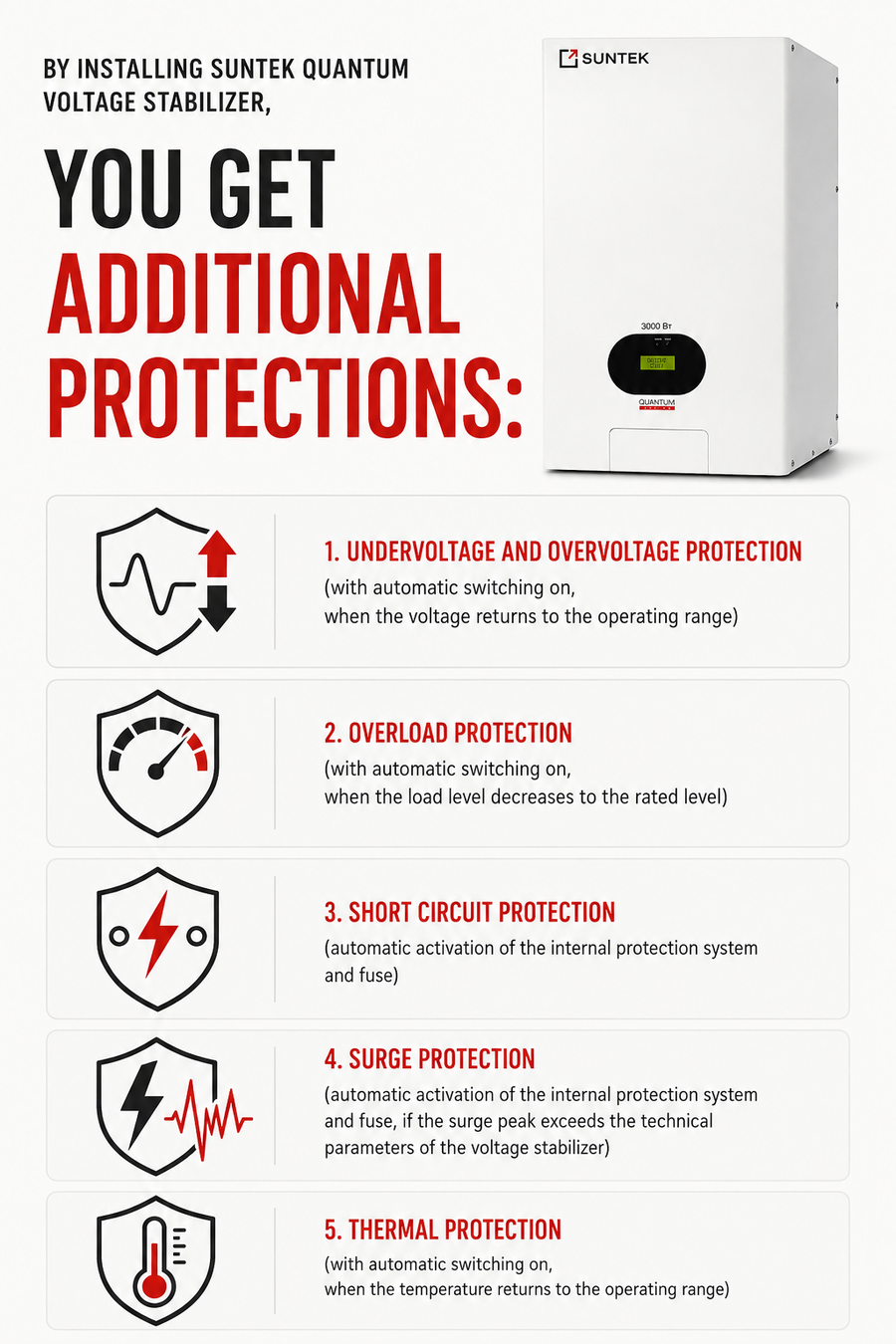

Protection Features

The SUNTEK QUANTUM 3000 Wi-Fi provides comprehensive protection against:

  • Undervoltage and overvoltage (with automatic recovery when voltage returns to the operating range).
  • Overload conditions (with automatic recovery after the load returns to nominal values).
  • Short circuits (via integrated electronic protection and fuse protection).
  • Surge and impulse overvoltage events (via integrated protection circuitry and fuse protection when surge levels exceed device specifications).
  • Overtemperature conditions (with automatic recovery after temperature returns to the permissible operating range).

Operating Conditions

  • Operating Mode: Continuous duty (24/7)
  • Ambient Temperature Range: –5 °C to +45 °C
  • Protection Class: IP20
  • Installation Type: Wall-mounted or floor-standing

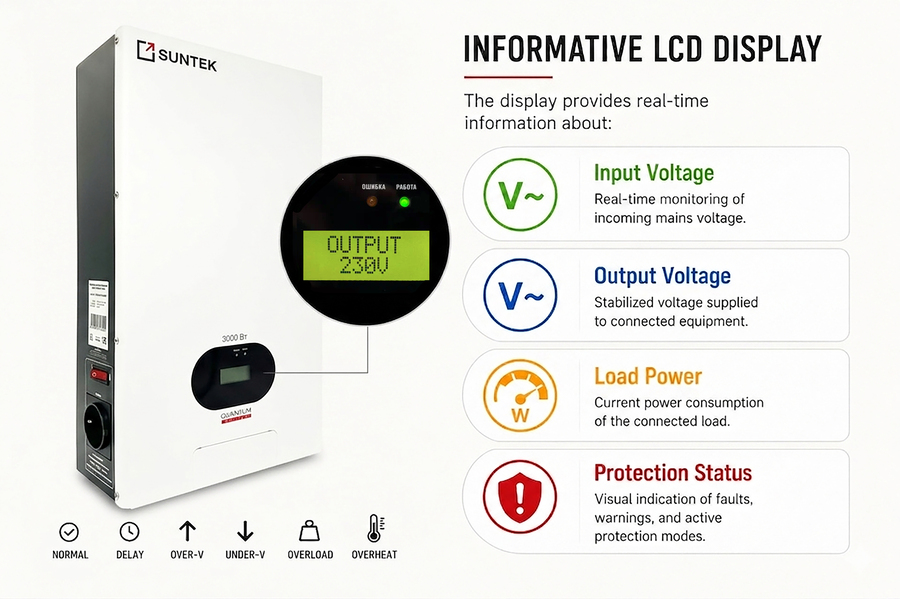

Display Information

The digital display provides real-time indication of:

  • Input voltage
  • Output voltage
  • Load power
  • Alarm and protection status indications

Warranty

Warranty Period: 3 Years
