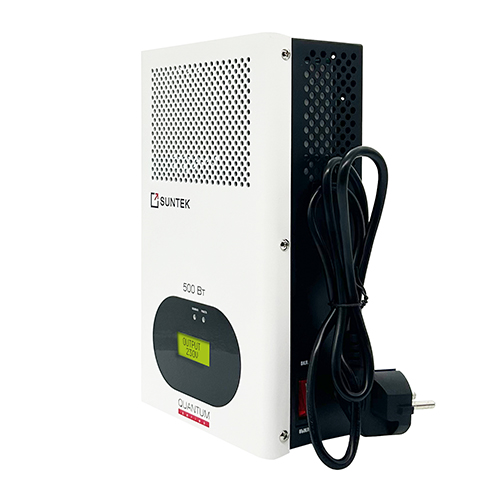

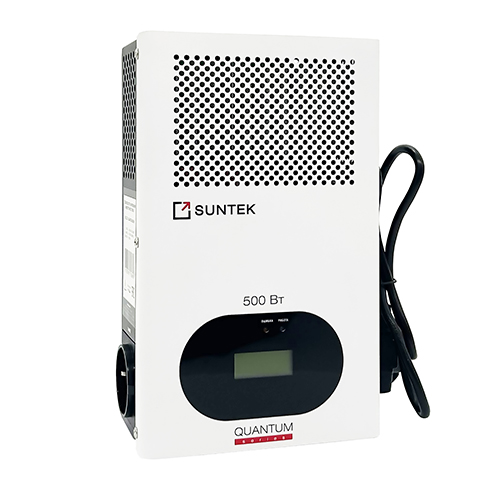

Invertor voltage stabilizer SUNTEK QUANTUM 500VA

The SUNTEK QUANTUM 500VA is a single-phase inverter voltage stabilizer with double-conversion technology designed to supply sensitive electronic equipment in areas with unstable power networks.

Built for continuous operation, the QUANTUM series is engineered with one primary goal: maximum protection of connected equipment.

Unlike conventional stabilizers, the SUNTEK QUANTUM contains no mechanical regulation components and does not utilize an automatic bypass mode that transfers raw utility voltage directly to the load.

Operating Principle

The stabilizer operates using online double-conversion technology:

• Incoming AC voltage is converted into DC voltage.
• A new, clean AC output voltage is then generated from the DC stage.

As a result:

• Output voltage is independent of input voltage fluctuations.
• There are no relay switching steps.
• Response time to voltage changes is effectively zero.
• Pure sine wave output is maintained at all times.

IMPORTANT ADVANTAGE

Most inverter stabilizers on the market use an active bypass mode. Under overload conditions, internal faults, or certain operating modes, these devices may transfer unstable utility voltage directly to connected equipment.

SUNTEK QUANTUM follows a different protection philosophy.

The stabilizer does not employ an automatic bypass that feeds raw mains voltage to the load.

If operating parameters exceed safe limits, or if an overload or internal fault occurs, the stabilizer disconnects the load instead of passing unstable input voltage through to connected equipment.

This means your equipment receives either:

• Stable 230V ±2% pure sine wave output;
• Or a complete protective shutdown.

The scenario where unstable mains voltage reaches your equipment is eliminated by design.

Technical Specifications

Protection Features

The SUNTEK QUANTUM 500VA provides comprehensive protection against:

All protection systems operate automatically and restore normal operation when conditions return to acceptable limits.

Operating Conditions

• Continuous operation: 24/7
• Ambient temperature: -5°C to +45°C
• Protection rating: IP20
• Installation: Wall-mounted or floor-standing

Digital Display Functions

The LCD display provides real-time information including:

Warranty

Warranty period: 3 Years

Recommended Applications

The SUNTEK QUANTUM 500VA is ideal for powering:

• Gas boilers and heating automation systems
• Televisions and audio/video equipment
• Computers and networking equipment
• CCTV and security systems
• Sensitive electronic household appliances
• Telecommunications equipment

The Perfect Voltage Stabilizer for Gas Boilers

Modern gas boilers contain sensitive components such as:

• Electronic control boards
• Circulation pumps
• Sensors and automation systems

The SUNTEK QUANTUM helps:

• Prevent control board failures
• Protect against voltage spikes and drops
• Maintain uninterrupted heating system operation
• Extend equipment service life

Because the output voltage is generated entirely by the inverter stage, the boiler always receives a stable and accurate 230V power supply regardless of network fluctuations.

With SUNTEK QUANTUM, your equipment receives either perfectly stabilized power or a safe protective shutdown—never unstable mains voltage.
